• Accents, interior Titanium Nova Silver-colored air outlets and center control stack with chrome door handle bezels, uplevel instrument cluster bezel, front upper door speaker bezel and air vent sliders
• Air conditioning, single-zone manual
• Audio system feature, uplevel speaker system
• Cruise control
• Floor covering, Ebony carpeting
• Steering column, Tilt-Wheel
• Steering wheel, leather-wrapped
• Theft-deterrent system, vehicle, PASSlock
• Visors, driver and front passenger, padded with cloth includes front passenger vanity mirror

• Alternator, 125 amps
• Battery, heavy-duty 590 cold-cranking amps, maintenance-free with rundown protection
• Brakes, 4-wheel antilock, front disc/rear drum
• Four wheel drive
• Steering, power, rack-and-pinion
• Suspension, rear semi-floating axle with 2-stage multi-leaf springs

• Air bags, frontal, driver and right-front passenger with Passenger Sensing System (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the Owner's Manual and child safety seat instructions for more safety information.)
• Daytime Running Lamps with automatic exterior lamp control
• Tire Pressure Monitor

Additional Packages

• Aj1 Pp1 3Sa Ue0 U2j Am6 M30 Llr Gt4 Zcy Us8 Vk3 50U 19J C3h Qnf Z85

• GLASS SOLAR-RAY DEEP-TINTED (all windows except light-tinted glass on windshield driver and front passenger-side glass)
• WHEELS 4 - 16" X 6" (40.6 CM X 15.2 CM) ALUMINUM (STD)
• SLE1 PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• ONSTAR DELETE
• XM RADIO DELETE
• SEATS FRONT 60/40 SPLIT-BENCH with (**J) SLE Deluxe Cloth manual recliners integral outboard head restraints armrest with integral storage and dual cup holders (STD)
• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive (STD)
• ENGINE 3.7L DOHC 5-CYLINDER SFI (242 hp [180.4 kW] @ 5600 rpm) 242 lb-ft [326.7 N-m] @ 4600 rpm) (STD)
• REAR AXLE 3.73 RATIO
• TIRE COMPACT SPARE (STD)
• AUDIO SYSTEM AM/FM STEREO with CD/MP3 player seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume 4 speakers on Regular Cab and 6 speakers on Extended and Crew Cab (STD)
• LICENSE PLATE BRACKET FRONT
• SUMMIT WHITE
• EBONY SLE DELUXE CLOTH
• GVWR 5300 LBS. (2404 KG) (STD)
• TIRES P235/75R16 ALL-SEASON BLACKWALL (STD)
• SUSPENSION PACKAGE HEAVY-DUTY (STD)
• Keyless Entry
• Power Door Locks
• Power Mirror(s)
• Power Windows
• Auto-Dimming Rearview Mirror
• Four Wheel Drive
• Tow Hooks
• Power Steering
• ABS
• Front Disc/Rear Drum Brakes
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Temporary Spare Tire
• Fog Lamps
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• Bed Liner
• AM/FM Stereo
• CD Player
• MP3 Capability
• Requires Subscription
• Bluetooth® Connection
• Cloth Seats
• Split Bench Seat
• Floor Mats
• Leather Steering Wheel
• Adjustable Steering Wheel
• Immobilizer
• Cruise Control
• A/C
• Power Outlet
• Auto-Dimming Rearview Mirror
• Passenger Vanity Mirror
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Requires Subscription
• Requires Subscription
• Requires Subscription
• Requires Subscription
• Child Safety Locks
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 590
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2850
• Gross Axle Wt Rating - Rear (lbs): 2896
• Curb Weight - Front (lbs): 2311
• Curb Weight - Rear (lbs): 1759
• Gross Vehicle Weight Rating Cap (lbs): 5300
• Gross Combined Wt Rating (lbs): 9500
• Gross Combined Wt Rating (lbs): 7000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 825
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2850
• Spring Capacity - Rear (lbs): 2900
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 2850
• Axle Capacity - Rear (lbs): 2900
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 30
• Shock Absorber Diameter - Rear (mm): 30
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 11.2 x 1.6
• Drum - Rear (Yes or ): Yes
• Rear Drum Diam x Width (in): 11.6 x 2.5
• Tires
• Front Tire Order Code: QNF
• Rear Tire Order Code: QNF
• Spare Tire Order Code: ZCY
• Front Tire Size: P235/75R16
• Rear Tire Size: P235/75R16
• Spare Tire Size: Compact
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6
• Rear Wheel Size (in): 16 x 6
• Spare Wheel Size (in): Compact
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 44.3
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 19
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 126.0
• Length, Overall w/o rear bumper (in): 207.1
• Width, Max w/o mirrors (in): 68.6
• Height, Overall (in): 64.9
• Overhang, Front (in): 33.9
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 137.3
• Cab to Axle (in): 22.6
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 30.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 61.4
• Cargo Box Width @ Floor (in): 57.2
• Cargo Box Width @ Wheelhousings (in): 42.6
• Cargo Box (Area) Height (in): 18.6
• Tailgate Width (in): 52.4
• Cargo Volume (ft³): 37.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 39.3
• Front Leg Room (in): 42.2
• Front Shoulder Room (in): 57.1
• Front Hip Room (in): 53.3
• Second Head Room (in): 38.3
• Second Leg Room (in): 34.8
• Second Shoulder Room (in): 57.1
• Second Hip Room (in): 52.9
• Summary

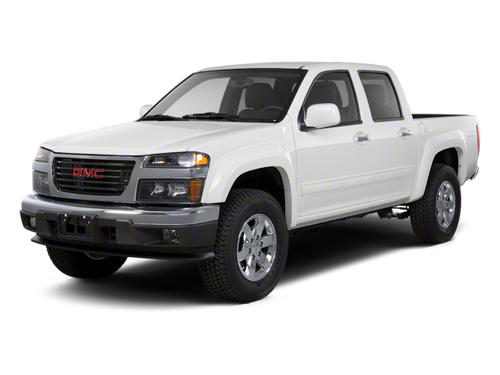

• Vehicle Name: GMC Canyon
• Body Style: Crew Cab
• Body Code: E63
• Emissions
• EPA Greenhouse Gas Score: 3
• EPA Greenhouse Gas Score: 4
• Tons/yr of CO2 Emissions @ 15K mi/year: 10.4
