• 6-speaker audio system
• Air conditioning, dual-zone automatic climate control
• Assist handle, front passenger on A-pillar
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system
• Chevrolet MyLink audio system, 8" Diagonal Color Touch with AM/FM/SiriusXM, USB ports auxiliary jack, SD card slot, Bluetooth® streaming audio for music and most phones, hands-free smartphone integration, Pandora Internet radio, voice-activated technology for radio and phone
• Cruise control, electronic with set and resume speed, steering wheel-mounted
• Defogger, rear-window electric
• Door locks, power
• Driver Information Center, 4.2-inch diagonal color display includes driver personalization, warning messages and vehicle information
• Driver Personalization Memory, Seat and Mirrors
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)
• Mirror, inside rearview auto-dimming
• OnStar with 4G LTE provides a built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds (Visit www.onstar.com for vehicle availability, details and system limitations. Services and connectivity may vary by model and conditions. 4G LTE service available in select markets. 4G LTE performance based on industry averages and vehicle systems design. Some services require data plan.)
• Power outlet, 110-volt AC
• Remote Keyless Entry, with 2 transmitters
• Remote vehicle starter system
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Seating, heated driver and front passenger
• Single-slot CD/MP3 player (Replaced by (U42) rear seat DVD/Blu-Ray Entertainment Package when (U42) is ordered.)
• SiriusXM Satellite Radio (subscription required)
• Steering column, manual tilt and telescoping
• Steering wheel audio controls
• Steering wheel, leather-wrapped with audio and cruise controls
• Theft-deterrent system, unauthorized entry
• Universal Home Remote
• Visors, driver and front passenger illuminated vanity mirrors
• Window, power, rear sliding with rear defogger
• Windows, power front and rear with driver express up and down and express down on all other windows

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Body, Pick Up Box
• Brakes, 4-wheel disc with DURALIFE rotors, 4-wheel antilock
• Differential, heavy-duty locking rear
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Steering, Electric Power Steering (EPS) assist, rack-and-pinion
• Transfer case, electronic Autotrac with rotary dial control (Included with 4WD models only.)
• Underbody shield, transfer case protection (Requires 4WD models.)
• Vehicle control, hill descent
• Z71 Package, Off-Road includes monotube Rancho brand shocks, (K47) air cleaner, (JHD) Hill Descent Control, (NZZ) underbody shield on 4WD models and (V76) recovery hooks. Also includes brushed metal Z71 door sill plate, unique Z71 gauge cluster, unique finish interior trim plates, unique lower bumper appearance, unique grille design with Z71 badge and Z71 pickup box decals (Includes (RBX) 18" tire and (RD1) 18" bright machined wheels. Upgradeable to (RD2) 20" chrome wheels or 22" LPO wheels.)

• Airbags, Dual-stage frontal airbags for driver and front passenger, seat-mounted side-impact airbags for driver and front outboard passenger, and head-curtain side-impact airbags for front and rear outboard seating positions; includes Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar Equipped (subscription required)
• Rear Vision Camera with dynamic guide lines
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

LTZ PLUS PACKAGE

• includes (JF4) power adjustable pedals
• (UQA) Bose premium audio system
• (UD5) Front and Rear Park Assist and (UVD) heated leather steering wheel

2LZ PREFERRED EQUIPMENT GROUP

• includes standard equipment

CHEVROLET MYLINK AUDIO SYSTEM, 8" DIAGONAL COLOR TOUCH NAVIGATION WITH AM/FM/SIRIUSXM, USB PORTS

• auxiliary jack
• SD card slot
• Bluetooth® streaming audio for music and most phones
• hands-free smartphone integration
• Pandora Internet radio
• voice-activated technology for radio and phone

BED LINER, SPRAY-ON, PICKUP BOX BED LINER

• with bowtie logo consisting of high pressure
• chemically bonded
• sprayed-on polyurea & polyurethane liner formulation. Liner is permanently bonded to the truck bed providing a water tight seal. The textured
• non-skid surface is black in color and robotically applied to yield consistent 90 mil floor and tailgate thickness along with 50 mil box sidewall thickness. Spray-on liner covers entire bed interior surface below side rails
• including tailgate
• front box top rail
• gage hole plugs and lower tie down loops.

SEATS, FRONT FULL-FEATURE LEATHER-APPOINTED BUCKET WITH (KA1) HEATED SEAT CUSHIONS AND SEAT BACKS

• includes 10-way power driver and front passenger seat adjusters
• including 2-way power lumbar control
• 2-position driver memory
• adjustable head restraints
• (D07) floor console and storage pockets

LED LIGHTING, CARGO BOX

• with switch on center switch bank

TRANSMISSION, 6-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)

CONSOLE, FLOOR MOUNTED, RECONFIGURABLE

• with moveable cup holders
• cell phone storage
• power cord management and hanging file holder capability

WHEELS, 18" X 8.5" (45.7 CM X 21.6 CM) BRIGHT-MACHINED ALUMINUM

• (STD)

ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING

• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm) (STD)

TIRES, P265/65R18 ALL-TERRAIN, BLACKWALL

• (STD)

• 2LZ PREFERRED EQUIPMENT GROUP includes standard equipment
• JET BLACK PERFORATED LEATHER-APPOINTED SEAT TRIM
• SEATING HEATED AND COOLED PERFORATED LEATHER-APPOINTED FRONT BUCKET
• REAR AXLE 3.42 RATIO
• TRANSMISSION 6-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• ENGINE BLOCK HEATER
• CONSOLE FLOOR MOUNTED RECONFIGURABLE with moveable cup holders cell phone storage power cord management and hanging file holder capability
• TRAILER BRAKE CONTROLLER INTEGRATED
• LICENSE PLATE KIT FRONT
• STEERING WHEEL HEATED LEATHER-WRAPPED AND COLOR-KEYED
• CHEVROLET MYLINK AUDIO SYSTEM 8" DIAGONAL COLOR TOUCH NAVIGATION WITH AM/FM/SIRIUSXM USB PORTS auxiliary jack SD card slot Bluetooth® streaming audio for music and most phones hands-free smartphone integration Pandora Internet radio voice-activated technology for radio and phone
• PEDALS POWER-ADJUSTABLE
• WHEELS 18" X 8.5" (45.7 CM X 21.6 CM) BRIGHT-MACHINED ALUMINUM (STD)
• LTZ PLUS PACKAGE includes (JF4) power adjustable pedals (UQA) Bose premium audio system (UD5) Front and Rear Park Assist and (UVD) heated leather steering wheel
• LED LIGHTING CARGO BOX with switch on center switch bank
• PAINT SOLID
• SILVER ICE METALLIC
• BOSE SOUND WITH 6 SPEAKER SYSTEM (7 speaker system including subwoofer when ordered with bucket seats)
• ENGINE 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT DIRECT INJECTION AND VARIABLE VALVE TIMING includes aluminum block construction (355 hp [265 kW] @ 5600 rpm 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm) (STD)
• FRONT AND REAR PARK ASSIST ULTRASONIC
• SEATS FRONT FULL-FEATURE LEATHER-APPOINTED BUCKET WITH (KA1) HEATED SEAT CUSHIONS AND SEAT BACKS includes 10-way power driver and front passenger seat adjusters including 2-way power lumbar control 2-position driver memory adjustable head restraints (D07) floor console and storage pockets
• TIRES P265/65R18 ALL-TERRAIN BLACKWALL (STD)
• BED LINER SPRAY-ON PICKUP BOX BED LINER with bowtie logo consisting of high pressure chemically bonded sprayed-on polyurea & polyurethane liner formulation. Liner is permanently bonded to the truck bed providing a water tight seal. The textured non-skid surface is black in color and robotically applied to yield consistent 90 mil floor and tailgate thickness along with 50 mil box sidewall thickness. Spray-on liner covers entire bed interior surface below side rails including tailgate front box top rail gage hole plugs and lower tie down loops.
• Tow Hitch
• Locking/Limited Slip Differential
• Four Wheel Drive
• Aluminum Wheels
• Tow Hooks
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front All-Terrain
• Tires - Rear All-Terrain
• Conventional Spare Tire
• Tow Hooks
• Fog Lamps
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Power Folding Mirrors
• Privacy Glass
• AM/FM Stereo
• Satellite Radio
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• Requires Subscription
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• Bluetooth® Connection
• Telematics
• WiFi Hotspot
• Requires Subscription
• Power Driver Seat
• Power Passenger Seat
• Leather Seats
• Heated Front Seat(s)
• Driver Adjustable Lumbar
• Passenger Adjustable Lumbar
• Seat Memory
• Heated Front Seat(s)
• Pass-Through Rear Seat
• Rear Bench Seat
• Floor Mats
• Cruise Control
• Steering Wheel Audio Controls
• Leather Steering Wheel
• Adjustable Steering Wheel
• Steering Wheel Audio Controls
• Power Windows
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Remote Engine Start
• Universal Garage Door Opener
• Cruise Control
• Security System
• Mirror Memory
• Seat Memory
• Climate Control
• Multi-Zone A/C
• A/C
• Rear Defrost
• Rear Defrost
• Sliding Rear Window
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag Sensor
• Telematics
• Navigation from Telematics
• Requires Subscription
• Back-Up Camera
• Tire Pressure Monitor

• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 15.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 7200
• Gross Combined Wt Rating (lbs): 15000
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9200
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 920
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 620
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Maximum Trailering Capacity (lbs): 9200
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: Independent Driving
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.42
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: RBX
• Rear Tire Order Code: RBX
• Spare Tire Order Code: RC4
• Front Tire Size: P265/65R18
• Rear Tire Size: P265/65R18
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): 3950
• Rear Tire Capacity (lbs): 3950
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18 x 8.5
• Rear Wheel Size (in): 18 x 8.5
• Spare Wheel Size (in): 17 x 7.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Aluminum
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: 16.3
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 47.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 143.5
• Length, Overall w/o rear bumper (in): 230.03
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 73.97
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 150.90
• Cab to Axle (in): 31.97
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.3
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.90
• Ground Clearance, Rear (in): 8.90
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 69.33
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.6
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.2
• Cargo Volume (ft³): 53.4
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 66.03
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 65.73
• Second Hip Room (in): 60.27
• Summary

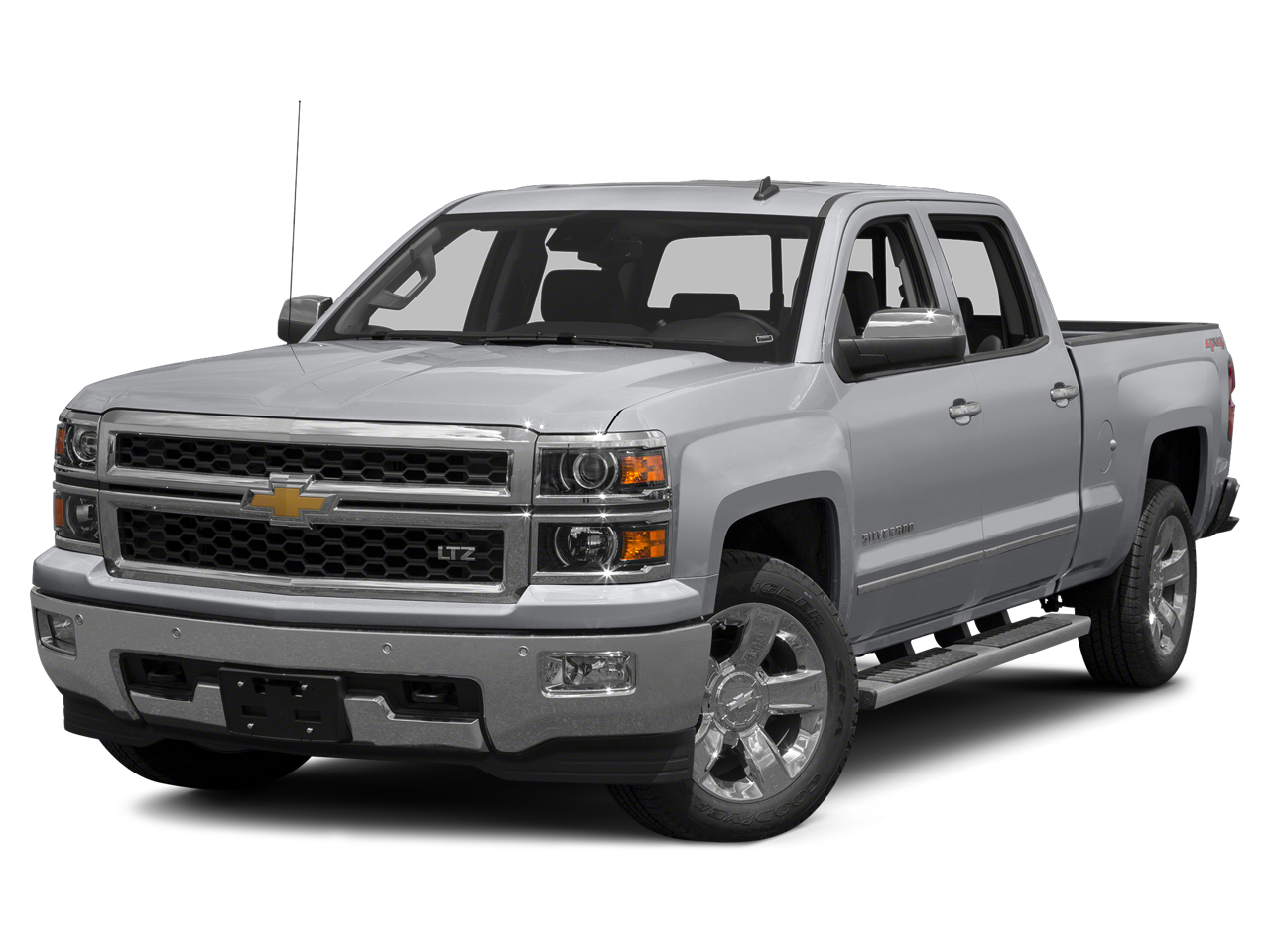

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Crew Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
