• 6-speaker audio system
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system
• Cruise control, steering wheel-mounted
• Door locks, power
• Driver Information Center, 4.2-inch diagonal color display includes driver personalization, warning messages and vehicle information
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Double Cab and Crew Cabs include second row floor mats)
• Remote Keyless Entry
• Seat trim, Cloth
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)

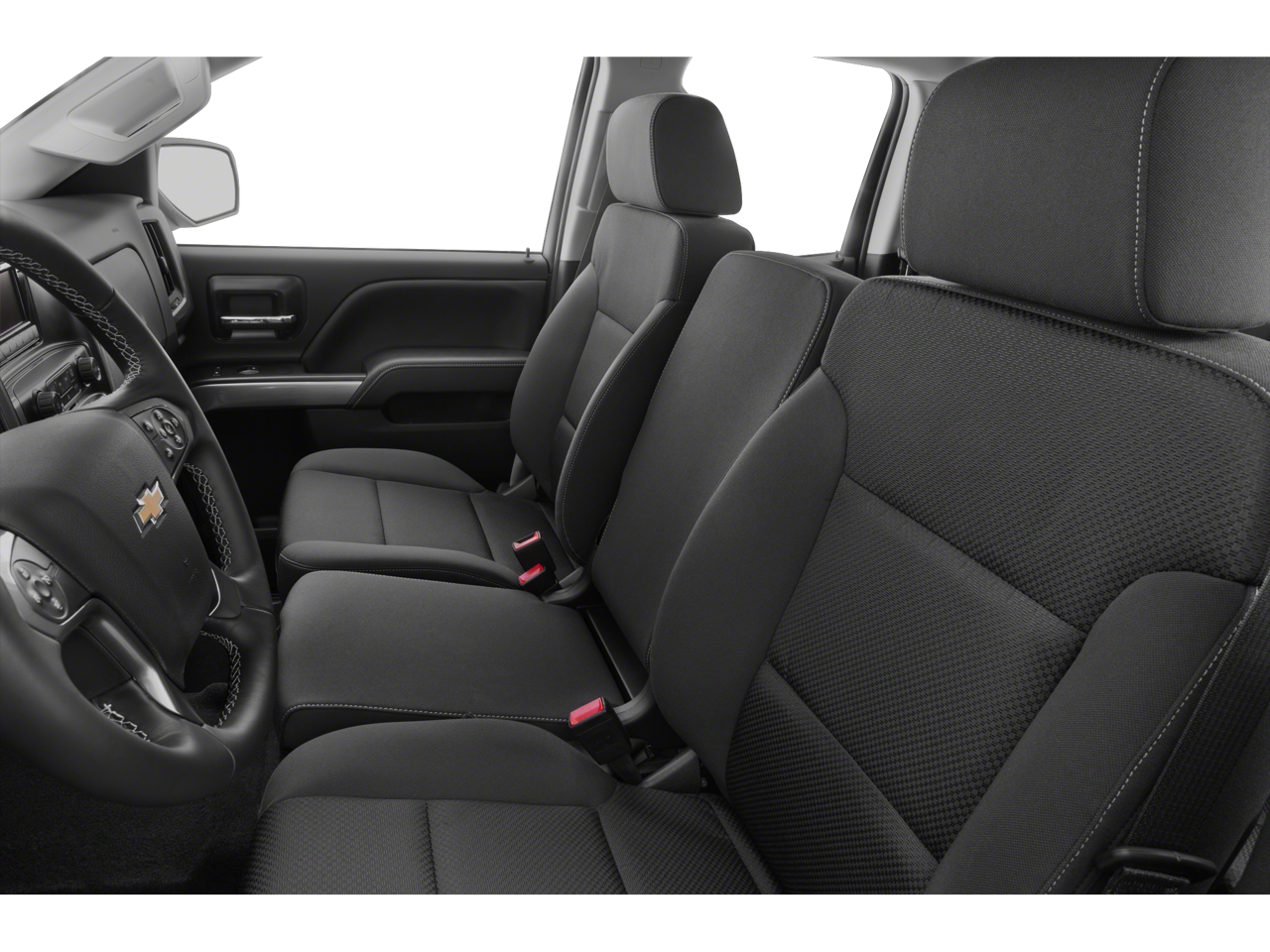

• Seats, front 40/20/40 split-bench, 3-passenger. Available in cloth or leather. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar, lockable storage compartment in seat cushion, and storage pockets. (Leather with (KA1) heat is an available extra charge option with (H1Y) Jet Black leather appointed interior trim and requires (PCM) LT Convenience Package. Upgradeable to (A95) front bucket cloth seats.)
• Single-slot CD/MP3 player
• SiriusXM Satellite Radio (subscription required)
• Steering column, manual Tilt-Wheel
• Steering wheel audio controls

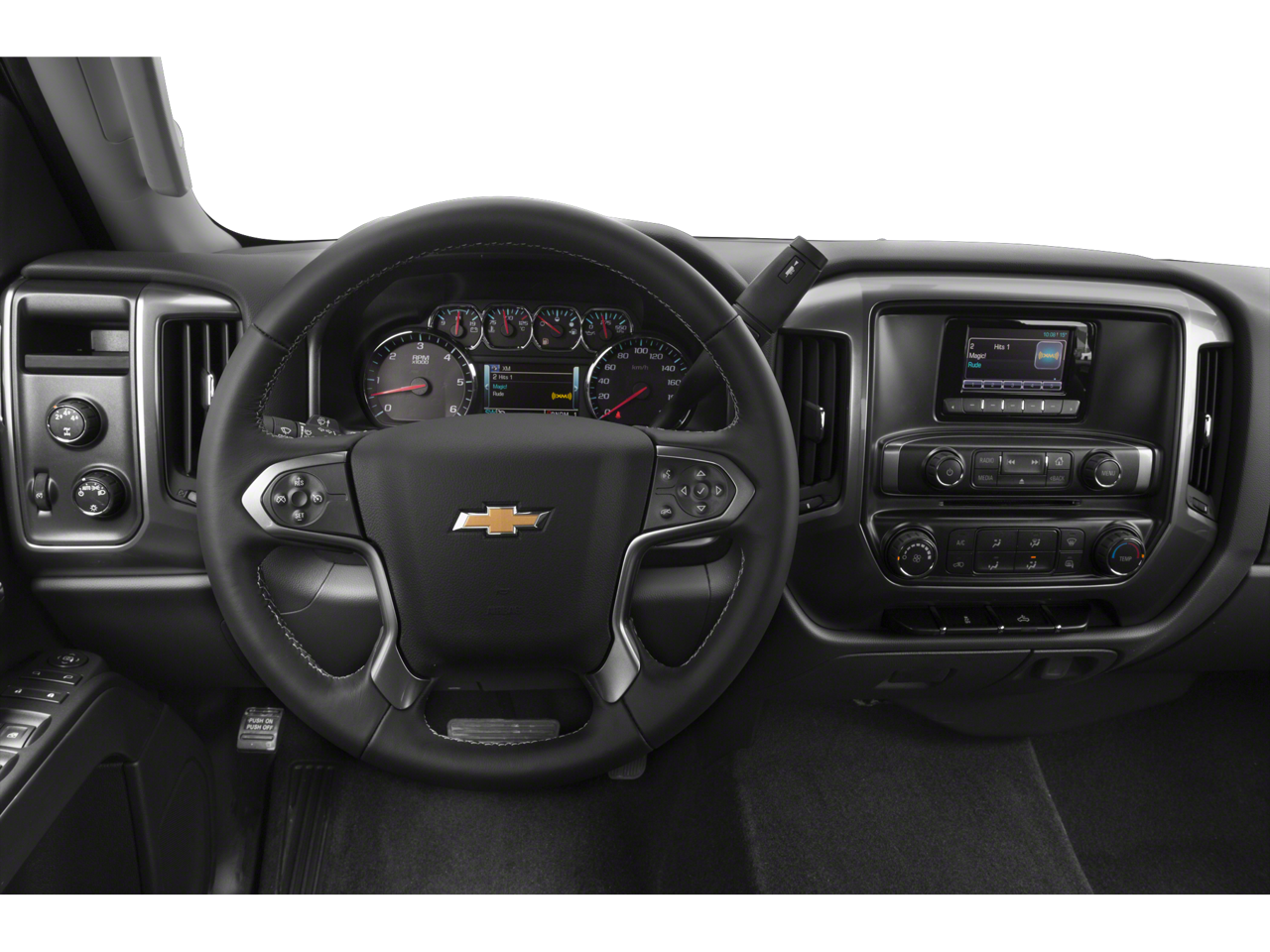

• Steering wheel, leather-wrapped with audio and cruise controls
• Visors, driver and front passenger illuminated vanity mirrors

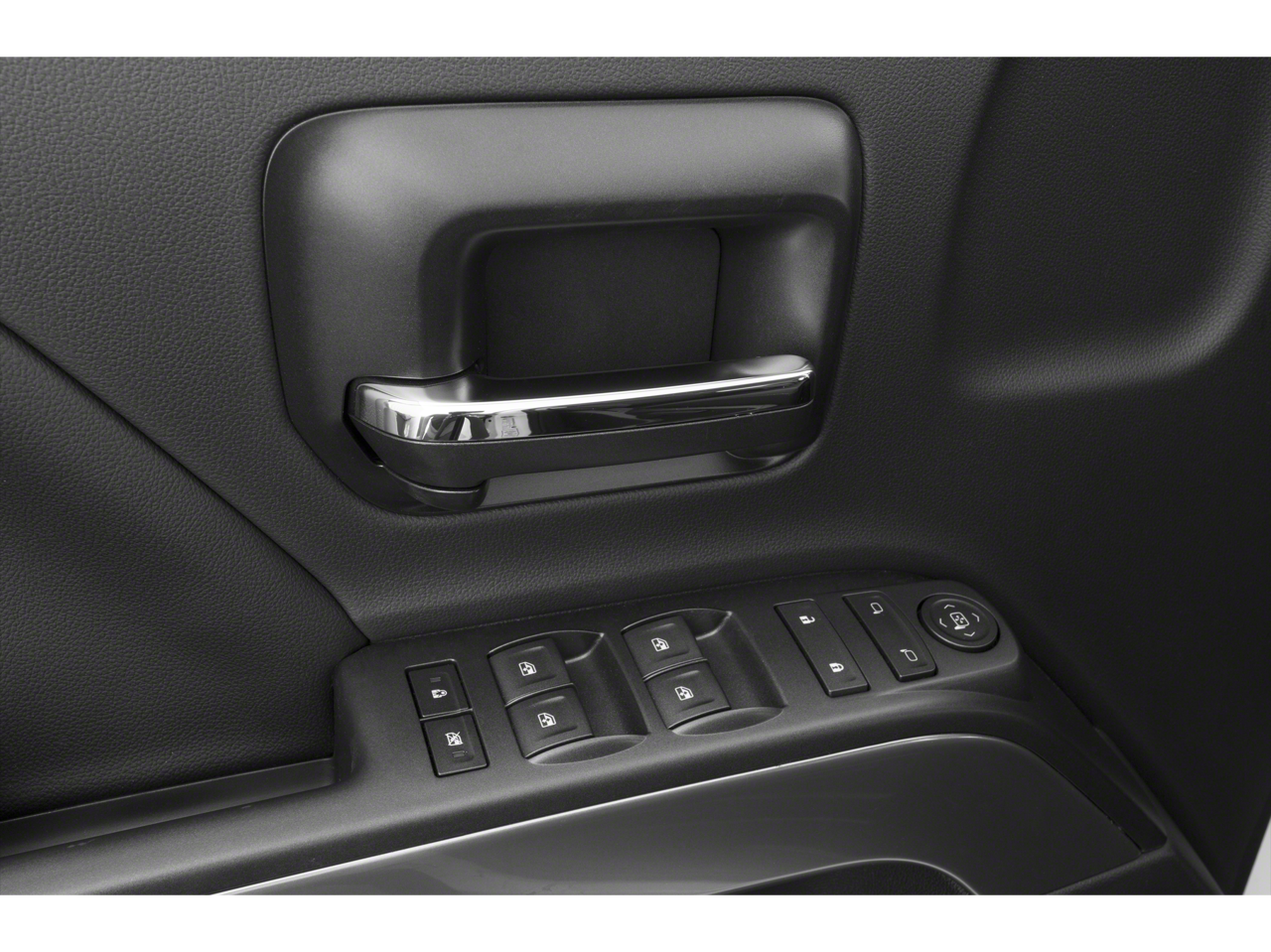

• Windows, power with driver express up and down and express down on all other windows

• Air cleaner, high-capacity
• Alternator, 150 amps
• Battery, heavy-duty 720 cold-cranking amps/80 Amp-hr, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Four wheel drive
• Frame, fully-boxed, hydroformed front section
• Pickup box, Wideside
• Recovery hooks, front, frame-mounted, black
• Steering, Recirculating Ball
• Suspension Package, Standard includes 51mm twin tube shock absorbers and 33mm front stabilizer bar
• Transfer case, electronic shift with rotary dial controls (Requires 4WD models.)

• Air bags, single-stage frontal and thorax side-impact, driver and front passenger, and head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Daytime Running Lamps with automatic exterior lamp control
• OnStar Equipped (subscription required)
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Tire Pressure Monitoring System (does not apply to spare tire)

Additional Packages

• G80 Btv C49 Dpn K05 Dd8 Az3 Jl1 Gt5 Vk3 Ki4 Uy2 Io5 Geh Z85 L96 Myd Pcm Pyq Zy1 Ag1 Z82 1Lt Cj2 Uvc H0u T3u Utj Qxt Gwx

• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• REMOTE VEHICLE STARTER SYSTEM
• DEFOGGER REAR-WINDOW ELECTRIC
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENDING BLACK. Includes integrated turn signal indicators consisting of 50 square inch flat mirror surface positioned over a 20 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable).
• ENGINE BLOCK HEATER
• MIRROR INSIDE REARVIEW AUTO-DIMMING

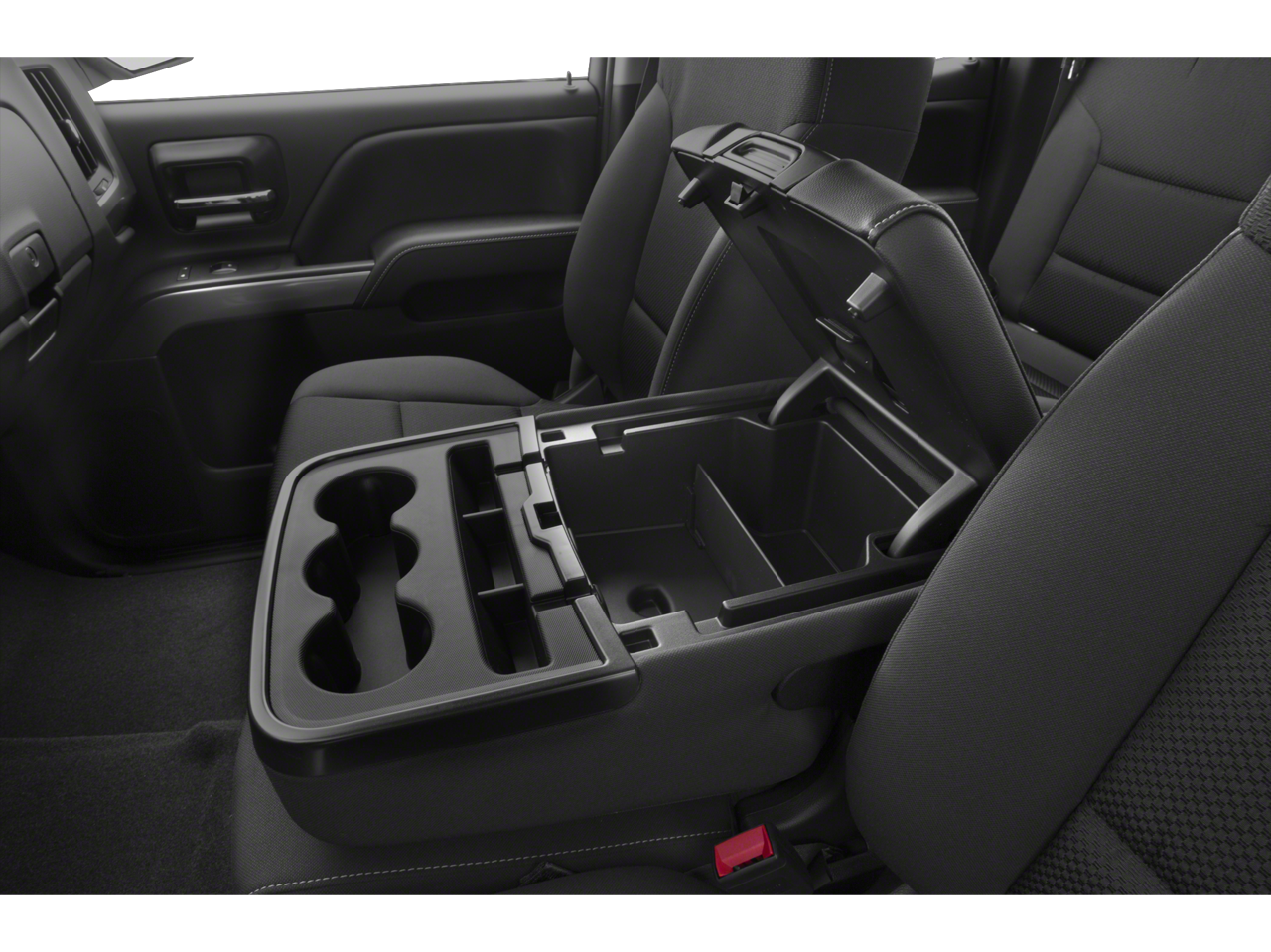

• SEATS FRONT 40/20/40 SPLIT-BENCH 3-PASSENGER. Available in cloth or leather. Includes driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Also includes manually adjustable driver lumbar lockable storage compartment in seat cushion and storage pockets. (STD)
• TRAILER BRAKE CONTROLLER INTEGRATED
• REAR AXLE 4.10 RATIO
• LICENSE PLATE KIT FRONT
• POWER OUTLET 110-VOLT AC
• TRAILERING WIRING PROVISIONS FOR CAMPER FIFTH WHEEL AND GOOSENECK TRAILER is located at the rear of the pickup box attached to the rear frame cross member

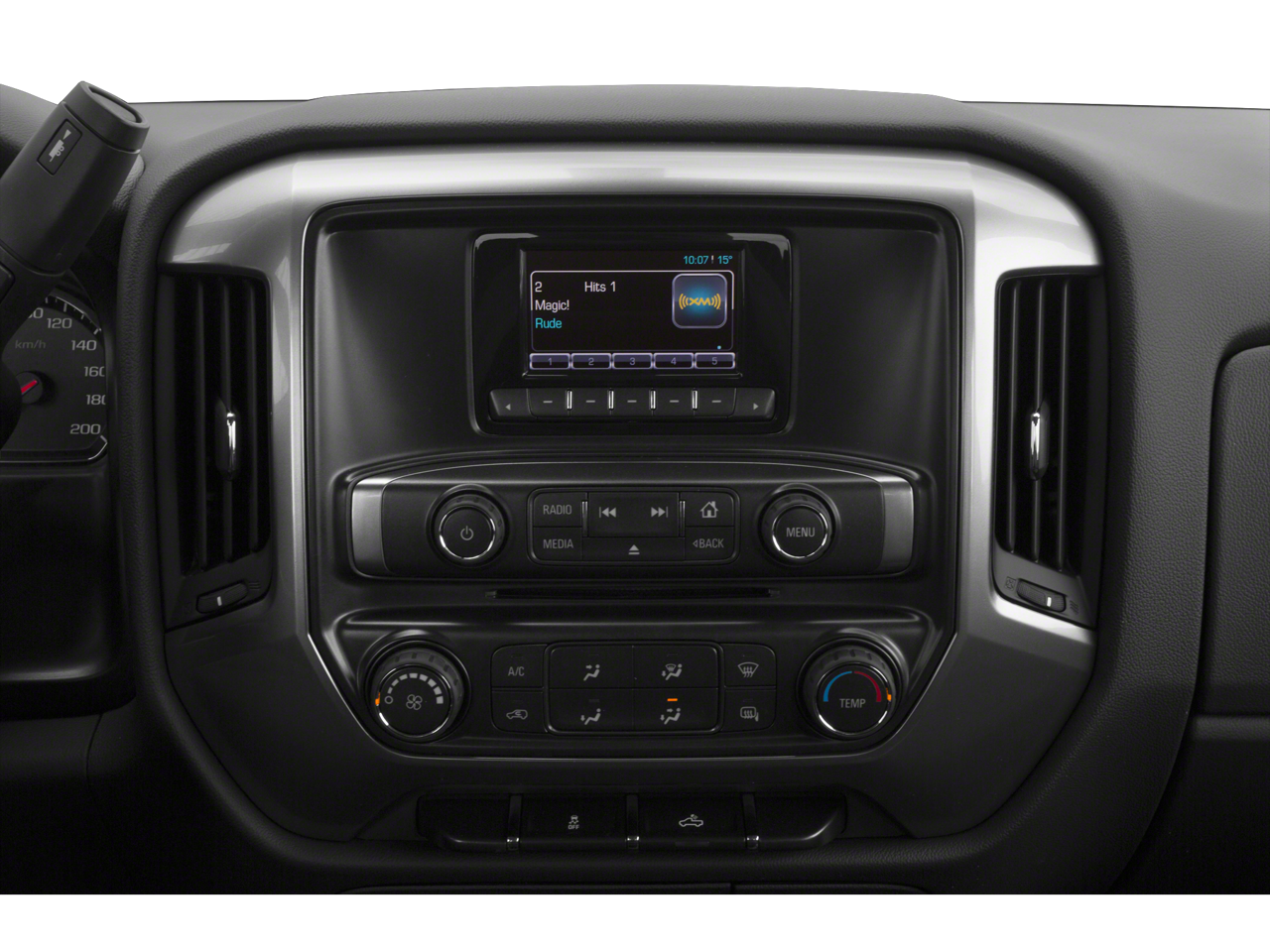

• CHEVROLET MYLINK AUDIO SYSTEM 8" DIAGONAL COLOR TOUCH WITH AM/FM/SIRIUSXM USB PORTS auxiliary jack SD card slot Bluetooth® streaming audio for music and most phones hands-free smartphone integration Pandora Internet radio voice-activated technology for radio and phone and 4 customizable themes
• GVWR 9500 LBS. (4309 KG)
• SUSPENSION PACKAGE STANDARD includes 51mm twin tube shock absorbers and 33mm front stabilizer bar (STD)
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI E85-COMPATIBLE FLEXFUEL capable of running on unleaded or up to 85% ethanol (360 hp [268.4 kW] @ 5400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm 380 lb-ft of torque [515.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)

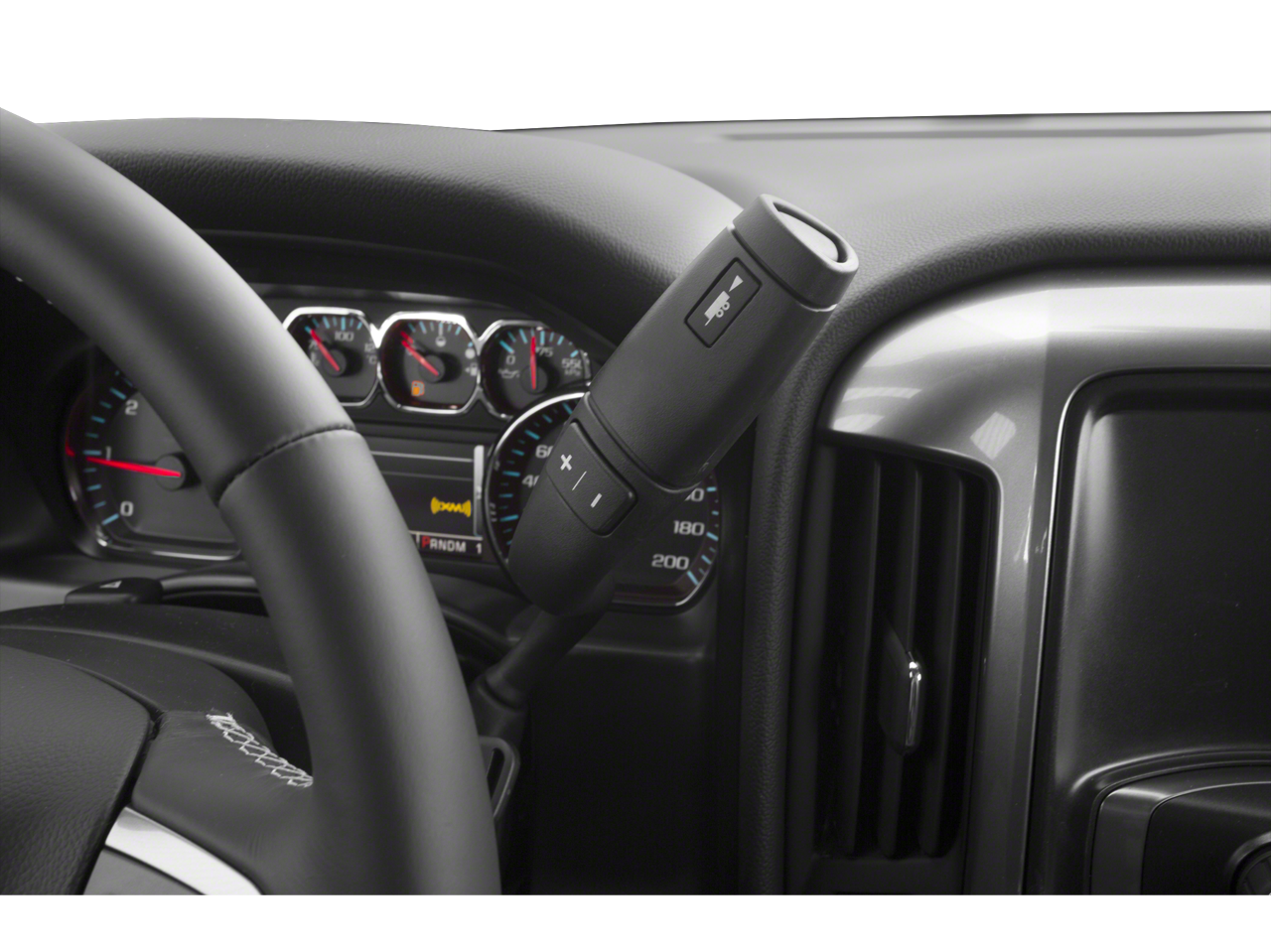

• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode. Includes Cruise Grade Braking and Powertrain Grade Braking (STD)
• LT CONVENIENCE PACKAGE includes (AG1) driver 10-way power seat adjuster with (AZ3) bench seats only (BTV) Remote vehicle starter system (UVC) Rear Vision Camera (C49) rear-window defogger (KI4) 110-volt power outlet and (T3U) fog lamps (Includes (CJ2) dual-zone automatic climate control (IO5) Chevrolet MyLink 8" Diagonal Color Touch audio system.
• WHEELS 17" (43.2 CM) MACHINED ALUMINUM includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered (STD)
• PAINT SOLID
• SEAT ADJUSTER DRIVER 10-WAY POWER
• TRAILERING EQUIPMENT Trailering hitch platform 2.5" with a 2.0" insert for HD 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector to hook up parking lamps backup lamps right and left turn signals an electric brake lead battery and a ground The trailer connector also includes the 4-way for use on trailers without brakes - park brake/turn lamps
• LT PREFERRED EQUIPMENT GROUP includes standard equipment
• AIR CONDITIONING DUAL-ZONE AUTOMATIC CLIMATE CONTROL
• REAR VISION CAMERA with dynamic guide lines
• JET BLACK CLOTH SEAT TRIM
• FOG LAMPS FRONT HALOGEN
• THEFT-DETERRENT SYSTEM UNAUTHORIZED ENTRY
• TIRES LT265/70R17E ALL-TERRAIN BLACKWALL
• BROWNSTONE METALLIC
• Four Wheel Drive
• Tow Hooks
• ABS
• 4-Wheel Disc Brakes
• Aluminum Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• AM/FM Stereo
• MP3 Capability
• Bluetooth® Connection
• Auxiliary Audio Input
• Smart Device Integration
• CD Player
• MP3 Capability
• Satellite Radio
• Requires Subscription
• Bluetooth® Connection
• Split Bench Seat
• Driver Adjustable Lumbar
• Cloth Seats
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Cruise Control
• Steering Wheel Audio Controls
• Leather Steering Wheel
• Steering Wheel Audio Controls
• Floor Mats
• Power Windows
• Power Door Locks
• Cruise Control
• Keyless Entry
• Power Door Locks
• A/C
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag On/Off Switch
• Telematics
• Navigation from Telematics
• Requires Subscription
• Tire Pressure Monitor

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 16.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3685
• Curb Weight - Rear (lbs): 2670
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 20500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 13000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1300
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 14200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 3550
• Maximum Trailering Capacity (lbs): 13000
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 51.0
• Shock Absorber Diameter - Rear (mm): 51.0
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QXT
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QXT
• Rear Tire Order Code: QHQ
• Front Tire Size: LT265/70R17E
• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT265/70R17E
• Rear Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36.0
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 144.20
• Length, Overall w/o rear bumper (in): 230.00
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 78.11
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 141.60
• Cab to Axle (in): 41.26
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.53
• Ground Clearance, Rear (in): 9.53
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.86
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.9
• Cargo Box Width @ Wheelhousings (in): 51.02
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.2
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 38.67
• Second Leg Room (in): 34.63
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.23
• Summary
• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Double Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
