• Air conditioning, rear
• Air conditioning, single-zone manual
• Assist handles, driver and right-front passenger
• Cruise control
• Door locks, power with lock-out protection
• Headliner, cloth
• Oil life monitor
• OnStar Equipped (subscription required)
• Power outlet, 120-volt
• Theft-deterrent system, vehicle, PASS-Key III
• Warning tones, headlamp on and key-in-ignition

• Battery, 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Brakes, 4-wheel antilock, 4-wheel disc
• Exhaust, aluminized stainless-steel muffler and tailpipe
• Frame, ladder-type
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Rear-wheel drive
• Steering, power
• Suspension, front independent with coil springs and stabilizer bar
• Suspension, rear hypoid drive axle with multi-leaf springs
• Tow/haul mode selector, instrument panel-mounted

• Daytime Running Lamps
• Door beams, steel-side
• OnStar Equipped (subscription required)
• StabiliTrak, traction assistance and vehicle stability enhancement system
• Tire Pressure Monitoring System (does not apply to spare tires)

Additional Packages

• Zy1 Myd 1Lt U0h Drj 93G Ya2 C49 L96 Gaz As5 Gu6 De5 Uvc Ag1 Tbm Zx5 Usr

• PAINT SOLID (STD)
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode and internal transmission oil cooler Includes external engine oil cooler. (STD)
• LT PREFERRED EQUIPMENT GROUP Includes Standard Equipment

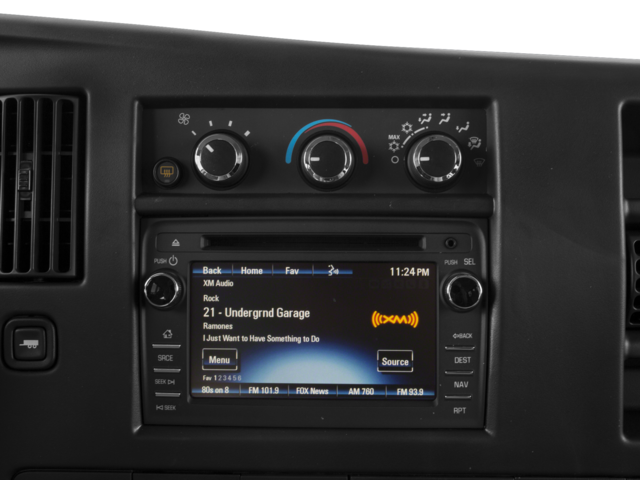

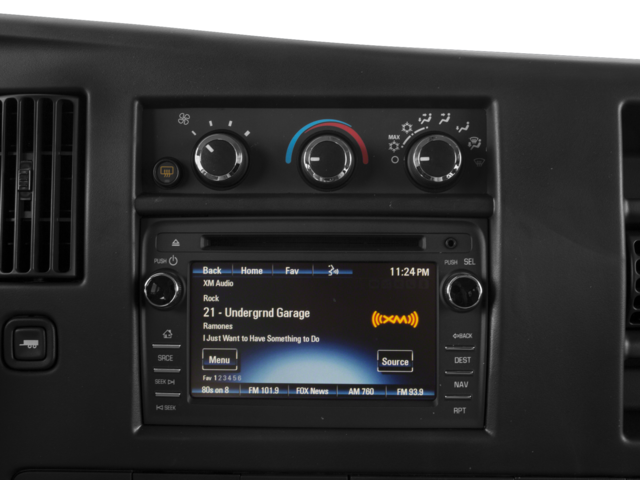

• AUDIO SYSTEM AM/FM STEREO WITH MP3 PLAYER AND USB PORT includes seek-and-scan digital clock TheftLock random select auxiliary jack and 2 front door speakers
• MIRROR INSIDE REARVIEW WITH REAR VISION CAMERA DISPLAY
• MEDIUM PEWTER CUSTOM CLOTH
• DOOR SLIDING PASSENGER-SIDE
• DEFOGGER REAR-WINDOW ELECTRIC

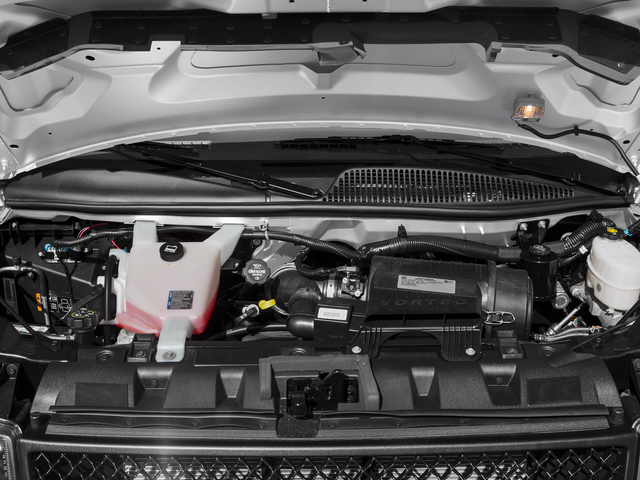

• ENGINE VORTEC 6.0L V8 SFI FLEXFUEL (342 hp [255.0 kW] @ 5400 rpm 373 lb-ft of torque [503.6 N-m] @ 4400 rpm) (Includes external engine oil cooler.
• SUMMIT WHITE

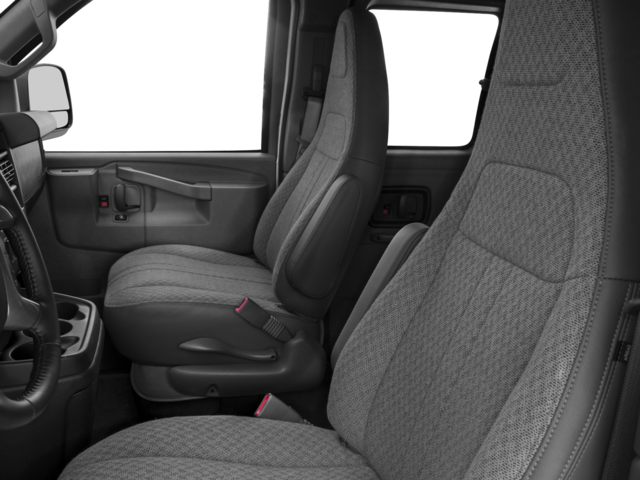

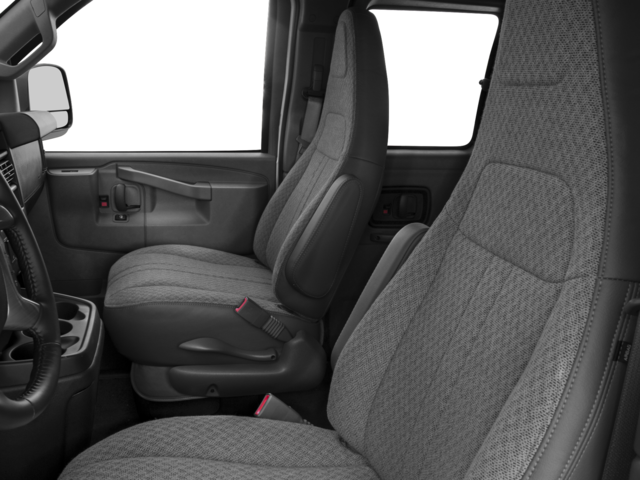

• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM head restraints and inboard armrests (STD)
• REAR AXLE 3.42 RATIO
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE BLACK MANUAL-FOLDING
• REAR VISION CAMERA
• SEAT ADJUSTER DRIVER 6-WAY POWER
• SHIP THRU PRODUCED IN WENTZVILLE AND SHIPPED TO ADRIAN STEEL

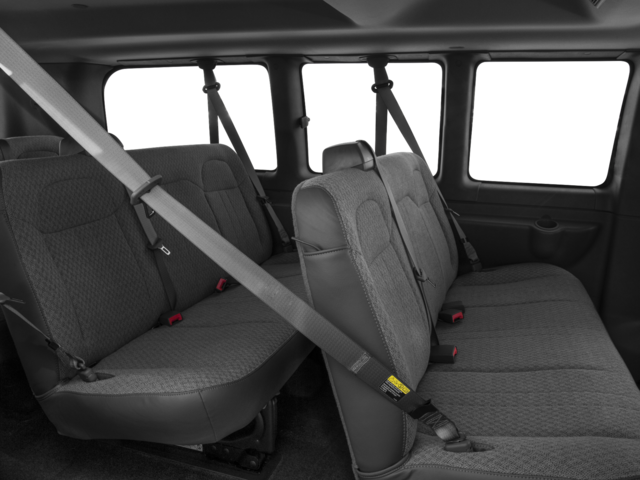

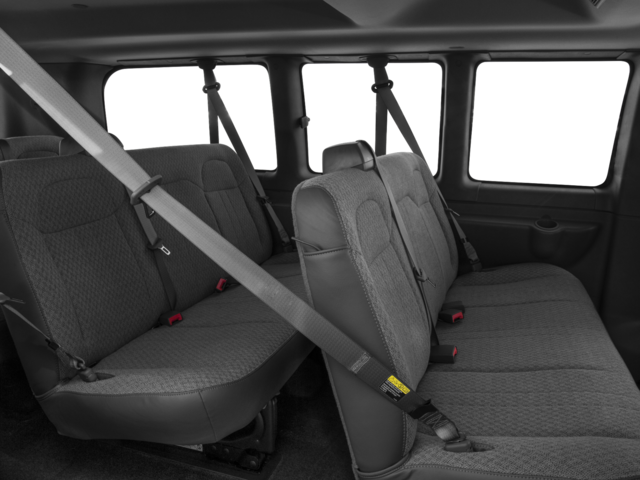

• SEATING 12-PASSENGER (2-3-3-4 SEATING CONFIGURATION) 4-passenger seat is a 50/50 split 2-piece configuration (STD)
• AUDIO SYSTEM FEATURE USB PORT
• Cruise Control

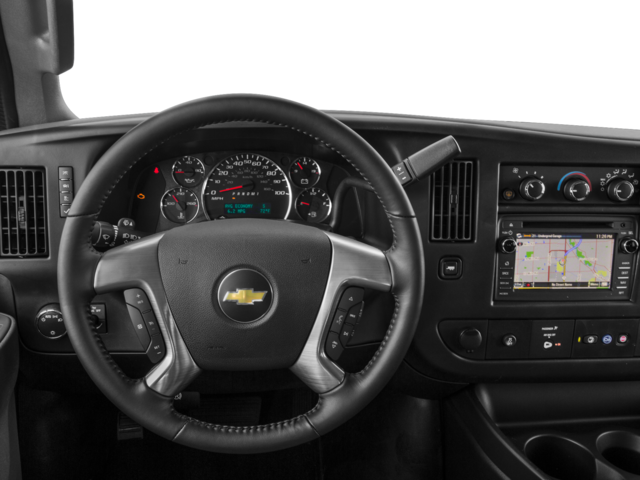

• Adjustable Steering Wheel
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Privacy Glass
• Intermittent Wipers
• AM/FM Stereo
• MP3 Capability
• Auxiliary Audio Input
• Telematics
• WiFi Hotspot
• Requires Subscription
• Cloth Seats
• Bucket Seats
• Rear Bench Seat
• 3rd Row Seat
• Power Outlet
• Power Outlet
• Floor Mats
• Tire Pressure Monitor
• Trip Computer
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Cruise Control
• Immobilizer
• A/C
• A/C
• Rear A/C
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Traction Control
• Stability Control
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch
• Passenger Air Bag Sensor
• Front Side Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Passenger Air Bag On/Off Switch
• Passenger Air Bag Sensor
• Telematics

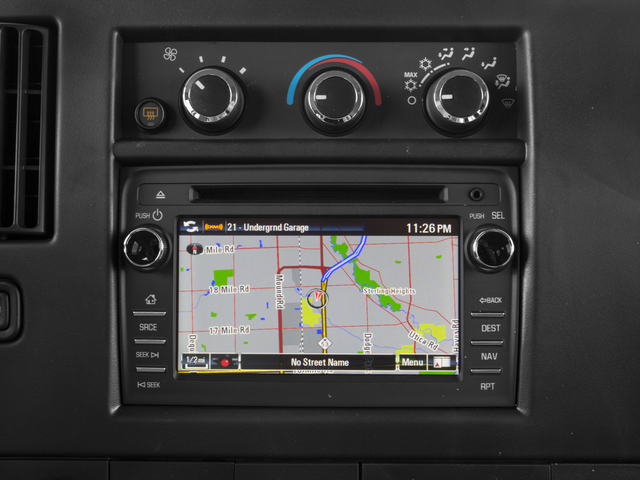

• Navigation from Telematics
• Requires Subscription
• Tire Pressure Monitor

• Vehicle
• Rear Door Type: Swing-Out
• Mileage
• Fuel Economy Est-Combined (MPG): 12
• Fuel Economy Est-Combined (MPG): 13 (2016)
• EPA Fuel Economy Est - City (MPG): 11
• EPA Fuel Economy Est - City (MPG): 11 (2016)
• EPA Fuel Economy Est - Hwy (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 17 (2016)
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4300
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 9600
• Gross Combined Wt Rating (lbs): 16000
• Gross Combined Wt Rating (lbs): 14600
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9600
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 960
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 820
• Maximum Trailering Capacity (lbs): 9700
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Hypoid Drive
• Spring Capacity - Front (lbs): 4300
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 4300
• Axle Capacity - Rear (lbs): 6084
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.38
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.18
• Tires
• Front Tire Order Code: XLP
• Rear Tire Order Code: YLP
• Spare Tire Order Code: ZLP
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16E
• Front Tire Capacity (lbs): 2205
• Rear Tire Capacity (lbs): 3042
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 49.2
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder-type
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: Mid-frame
• Doors
• Side Door Type: Sliding
• Side Door Type: Swing-Out
• Exterior Dimensions
• Wheelbase (in): 135.00
• Length, Overall w/rear bumper (in): 224.10
• Width, Max w/o mirrors (in): 79.20
• Height, Overall (in): 83.70
• Overhang, Front (in): 39.70
• Overhang, Rear w/bumper (in): 49.40
• Ground to Top of Load Floor (in): 27.80
• Ground Clearance, Front (in): 11.00
• Ground Clearance, Rear (in): 7.10
• Rear Door Opening Height (in): 49.40
• Rear Door Opening Width (in): 57.00
• Side Door Opening Height (in): 47.90
• Side Door Opening Width (in): 44.10
• Step Up Height - Front (in): 19.40
• Step Up Height - Side (in): 19.80
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.60
• Cargo Area Length @ Floor to Seat 1 (in): 126.20
• Cargo Area Length @ Floor to Seat 2 (in): 89.13
• Cargo Area Length @ Floor to Seat 3 (in): 57.16
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 50.40
• Cargo Box (Area) Height (in): 51.80
• Cargo Volume to Seat 1 (ft³): 216.2
• Cargo Volume to Seat 2 (ft³): - TBD -
• Cargo Volume to Seat 3 (ft³): 92.1
• Cargo Volume to Seat 4 (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 12
• Front Head Room (in): 39.80
• Front Leg Room (in): 41.30
• Front Shoulder Room (in): 68.80
• Front Hip Room (in): 65.50
• Second Head Room (in): 38.40
• Second Leg Room (in): 36.30
• Second Shoulder Room (in): 68.60
• Second Hip Room (in): 65.60
• Third Head Room (in): 38.50
• Third Leg Room (in): 36.60
• Third Shoulder Room (in): 65.80
• Third Hip Room (in): 63.30
• Fourth Head Room (in): 37.60
• Fourth Leg Room (in): 36.60
• Fourth Shoulder Room (in): 69.10
• Fourth Hip Room (in): 65.70
• Summary

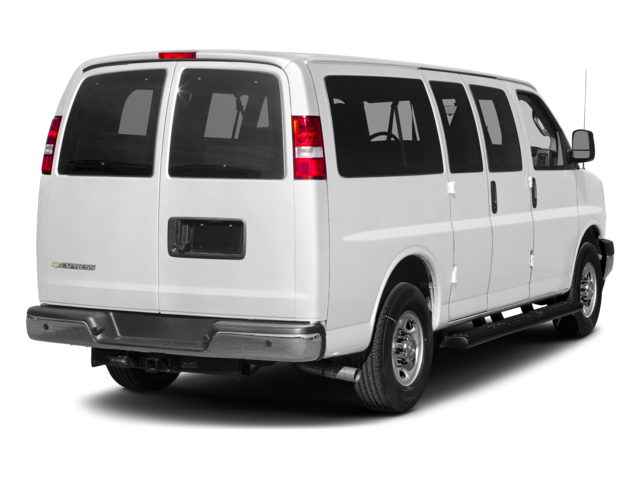

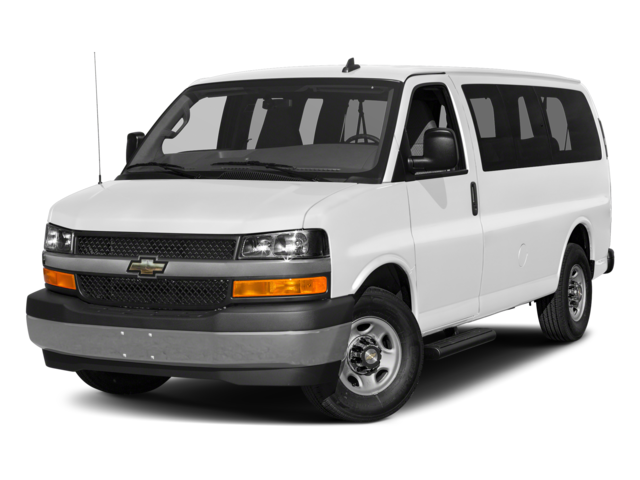

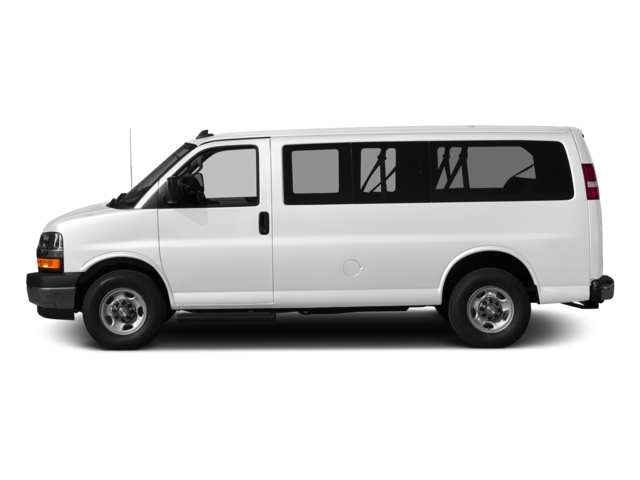

• Vehicle Name: Chevrolet Express Passenger
• Body Style: Passenger Van
• Body Code: ZW9
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 14.7
• Tons/yr of CO2 Emissions @ 15K mi/year: 13.8 (2016)
